Deployment Verification

Deploy the server

Complete either Docker Compose deployment or Source deployment.

Open ports

Follow Ports and network to allow only the ports required for your domain and TLS configuration.

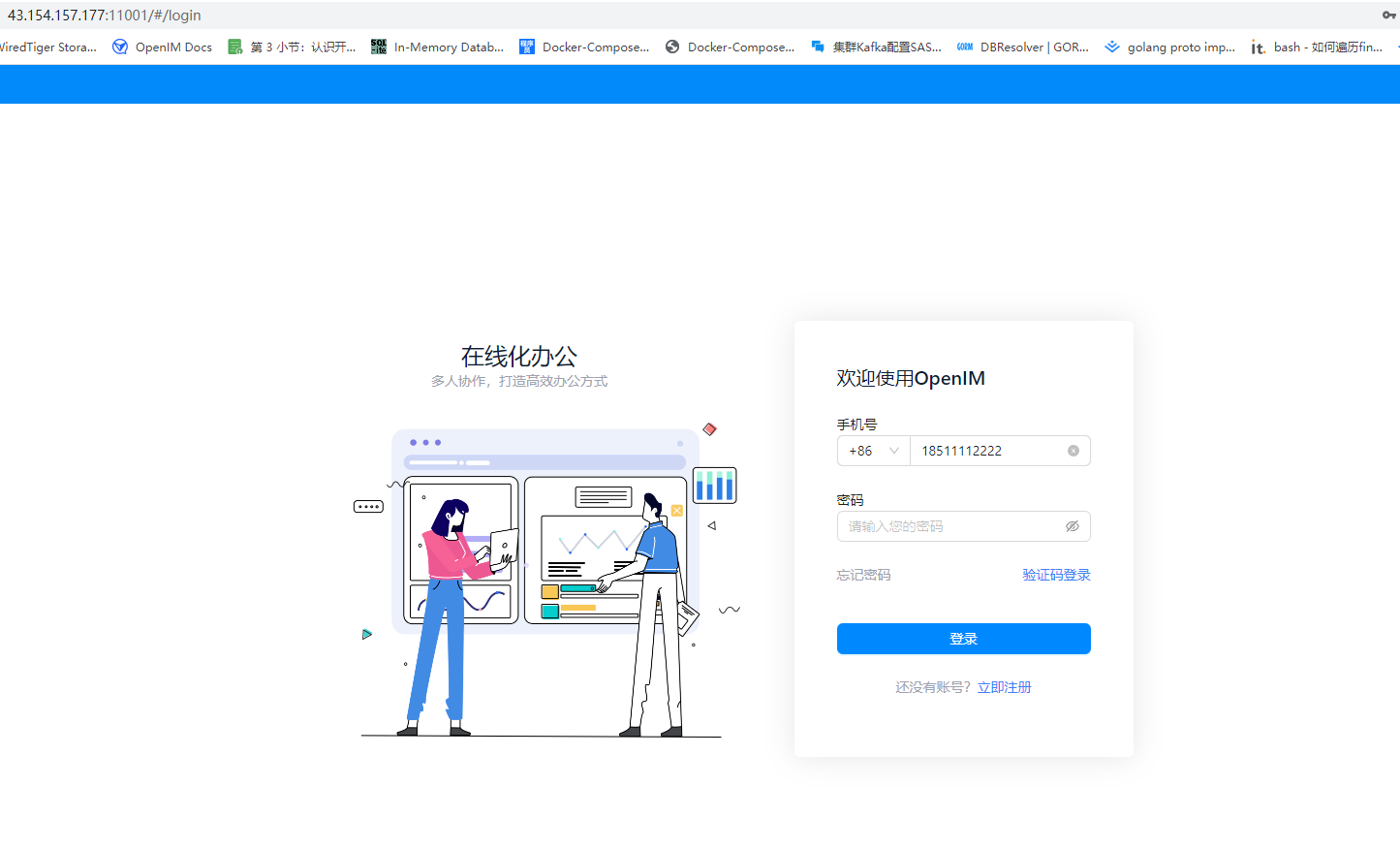

Verify PC Web

Open http://your_server_ip:11001 in a browser, where your_server_ip is the address of the server hosting the frontend.

If you do not have a test account, select the registration action on the login page, complete registration, and return to sign in. With the default configuration, verification code 666666 is available from verifyCode.superCode in chat/config/chat-rpc-chat.yml. If self-registration is disabled or the configuration was changed, use an actual test account and code.

Skip this step when only the server was deployed without a frontend.

Verify service processes

For Docker Compose:

docker ps | grep -E 'openim-server|openim-chat'

Containers may initially report health: starting. Wait 20-30s and confirm they become healthy before testing APIs.

For source deployments:

# Run in open-im-server
mage check

# Run in chat
mage check

Verify domains and gateways

With a domain and TLS, call real endpoints to confirm the OpenIMServer and ChatServer routes:

curl -sS -X POST "https://your_domain/api/auth/get_admin_token" \
  -H "Content-Type: application/json" \
  -H "operationID: verify-openim" \
  -d '{"secret":"your_openim_secret","userID":"imAdmin"}'

curl -sS -X POST "https://your_domain/chat/application/latest_version" \
  -H "Content-Type: application/json" \
  -H "operationID: verify-chat" \
  -d '{}'

A JSON response containing a business error usually still proves that the reverse-proxy path is connected.

Test the WebSocket gateway with any WebSocket client:

wss://your_domain/msg_gateway

In production, route traffic through port 443 and initialize OpenIMClientSDK with:

apiAddr: https://your_domain/api
wsAddr: wss://your_domain/msg_gateway

Verify a deployment without a domain

Use the server IP and default ports:

curl -sS -X POST "http://your_server_ip:10002/auth/get_admin_token" \
  -H "Content-Type: application/json" \
  -H "operationID: verify-openim-local" \
  -d '{"secret":"your_openim_secret","userID":"imAdmin"}'

curl -sS -X POST "http://your_server_ip:10008/application/latest_version" \
  -H "Content-Type: application/json" \
  -H "operationID: verify-chat-local" \
  -d '{}'

ChatServer POST endpoints also require the operationID header; omitting it returns a parameter error.
